PRODUCT FUNCTION


  • Push Pull Type : 1 Step Unlock (Push from outside and pull from inside)
  • Intrusion Detection Function
  • Anti-Panic System : That allows to open doors easily in case of emergency
  • Abnormal High Temperature Warning : Built-in Temperature Sensor (60±10℃ detection) unlocks door automatically in case of fire
  • Fake Password Input Function (Prevent Password Exposure)
  • Battery Dead Alarm
  • Initialization
Division
Specifications
Power source

DC 6V (Alkaline AA battery 4~8pcs(LR6 1.5V AA size))

Emergency

DC 9V (6LF22) Optional

Access methods

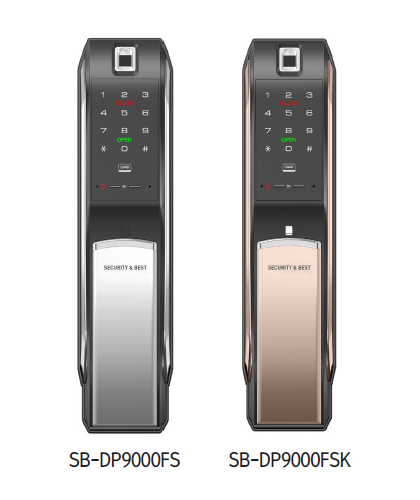

SB-DP9000FS : 3Way

(Finger, Pin number, RF Card / App)

SB-DP9000FSK : 4Way

(Finger, Pin number, RF Card, Mechanical Key / App)

Dimension(mm)
Outer Body - 84(W)×352(H)×68(D)
Inner Body - 83.4(W)×369(H)×69.3(D)
Color
Gold, Silver


PRODUCT FUNCTION
  • Push Pull Type : 1 Step Unlock (Push from outside and pull from inside)
  • Intrusion Detection Function
  • Anti-Panic System : That allows to open doors easily in case of emergency
  • Abnormal High Temperature Warning : Built-in Temperature Sensor (60±10℃ detection) unlocks door automatically in case of fire
  • Fake Password Input Function (Prevent Password Exposure)
  • Battery Dead Alarm
  • Initialization
Division
Specifications
Power source

DC 6V (Alkaline AA battery 4~8pcs(LR6 1.5V AA size))

Emergency

DC 9V (6LF22) Optional

Access methods

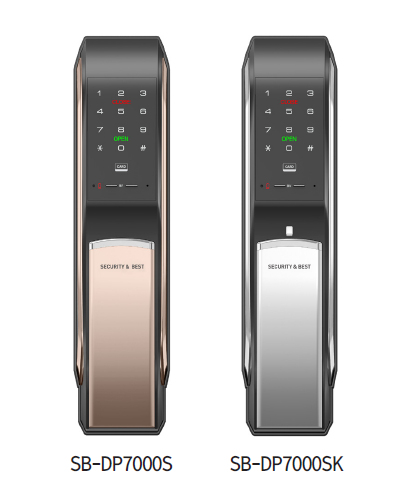

SB-DP7000S : 2Way

(Pin number, RF Card / App)

SB-DP7000SK : 3Way

(Pin number, RF Card, Mechanical Key / App)

Dimension(mm)
Outer Body - 84(W)×352(H)×68(D)
Inner Body - 83.4(W)×369(H)×69.3(D)
Color
Gold, Silver
