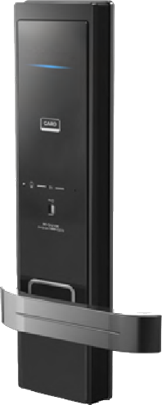

SB-9000F
PRODUCT FUNCTION


  • Abnormal High Temperature Warning
  • Internal double locking system
  • Two-way communication operating program (LAN)
  • Access control with USB port smart key card encoder (RTC)
  • Efficient Management with the master card
  • Battery Dead Alarm
  • Initialization
Division
Specifications
Color

BODY: DARK GRAY, BLACK / WINDOW : BLACK

Type

RF-CARD KEY-TYPE  Auto Lock (fixed handle type)

4 Way (Fingerprint, PIN, Card key, Manual Key),

BLE(Option), Remote control(Option), Face-recognition(Optional
Card Key

Touch Wake-up RF Function applied

Number of Keys

Up to 50 cards, 100 fingerprints can be registered

Operation Temp
-15~55℃
Dimension
Outer body : 88.4mm(W) X 382.8mm(H) X 62.6mm(D)
Inner body : 85.4mm (W) X 394.4mm(H) X 65.9mm(D)
Material
Exterior Part : flame-retardant ABS, GI
Interior Part : flame-retardant ABS, GI
Components
Outer body, Inner body, Mortise(Steel), Installation guide
Sets of Bolts, Batteries(4 pcs), Card Key, Manual Key
Installation condition
Door thickness 40mm ~ 60mm
